Forged Tee

Type:

Threaded End 2000LB, 3000LB, 6000LB (NPT, BSP)

Socket Welded End 3000LB, 6000LB, 9000LB

NPS: 1/8" to 4"

Standard: ASME B16.11

Material Range:

Stainless Steel: ASTM A182 F304/ F304L/ F316/ 316L/ F321/ F347/ F904L/ F20/ F70, etc.

Duplex Steel: ASTM A182 F51/ F53/ F55/ F60, etc.

Carbon Steel: ASTM A105, ASTM A350 LF2/ LF3/ LF6, etc.

Alloy Steel: A182 F1/ F5/ F9/ F11/ F22/ F91, A694 F42/ F46/ F48/ F50/ F52/ F56/ F60/ F65/ F70, etc.

Special Nickel Alloy Steel: ASTM B564 UNS N08367, N06035, N06200, N06686, N08031, N04400, N10276, N02200, N12160, N06617, N06600, N06025, N06625, N08800, N08811, N08825, N10665, N10675, N10242

Packaging: wooden box, Plywood box

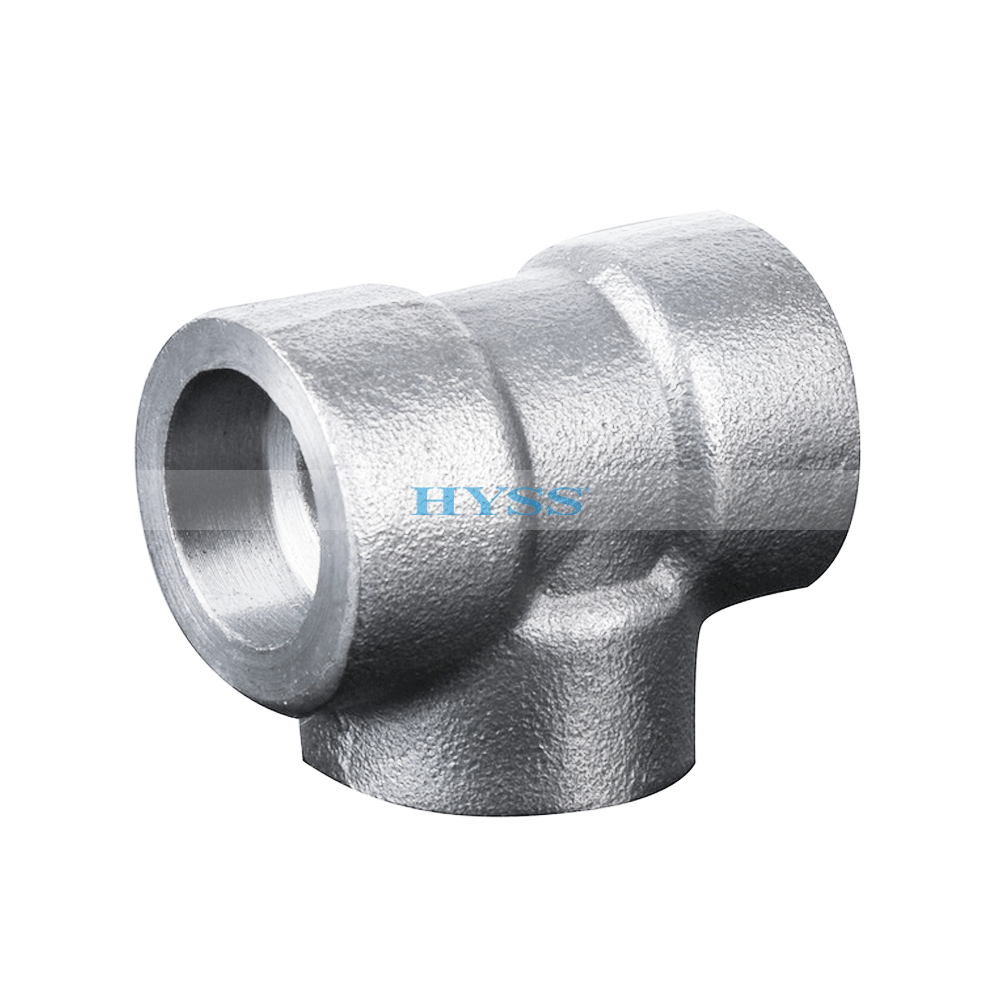

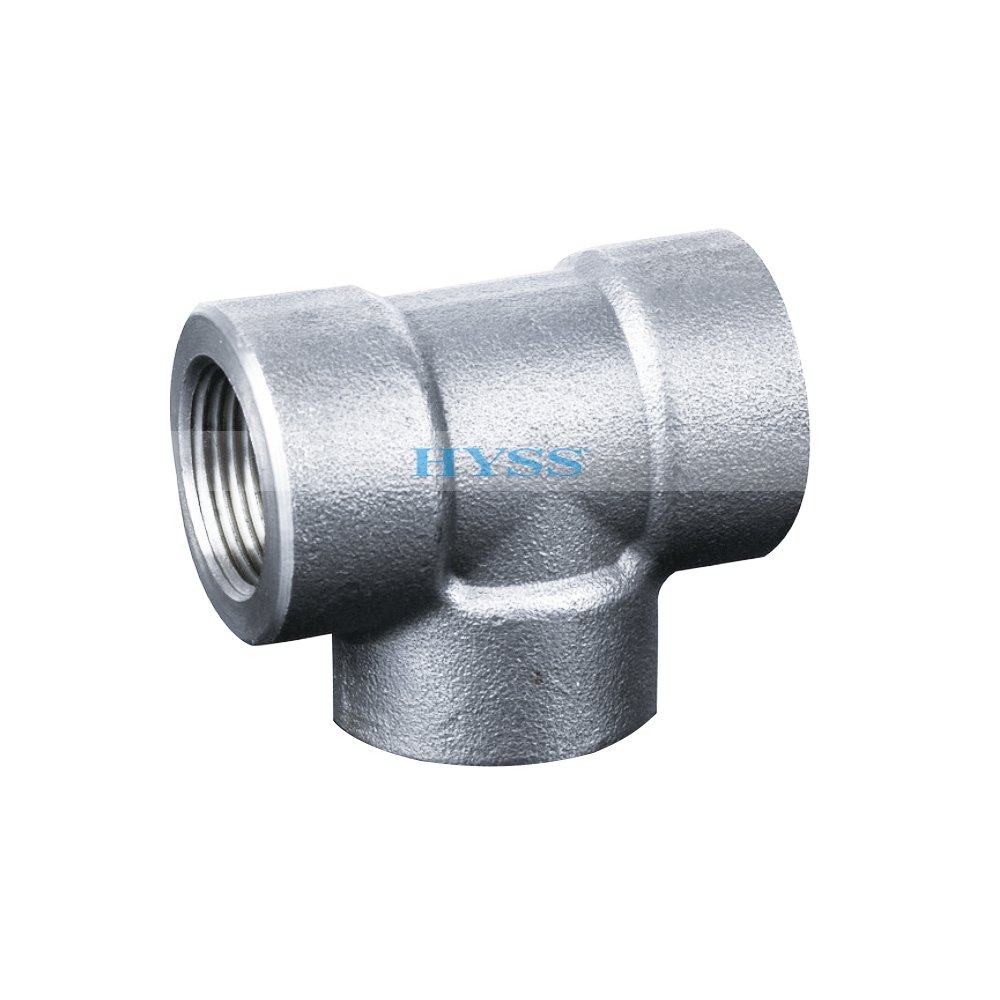

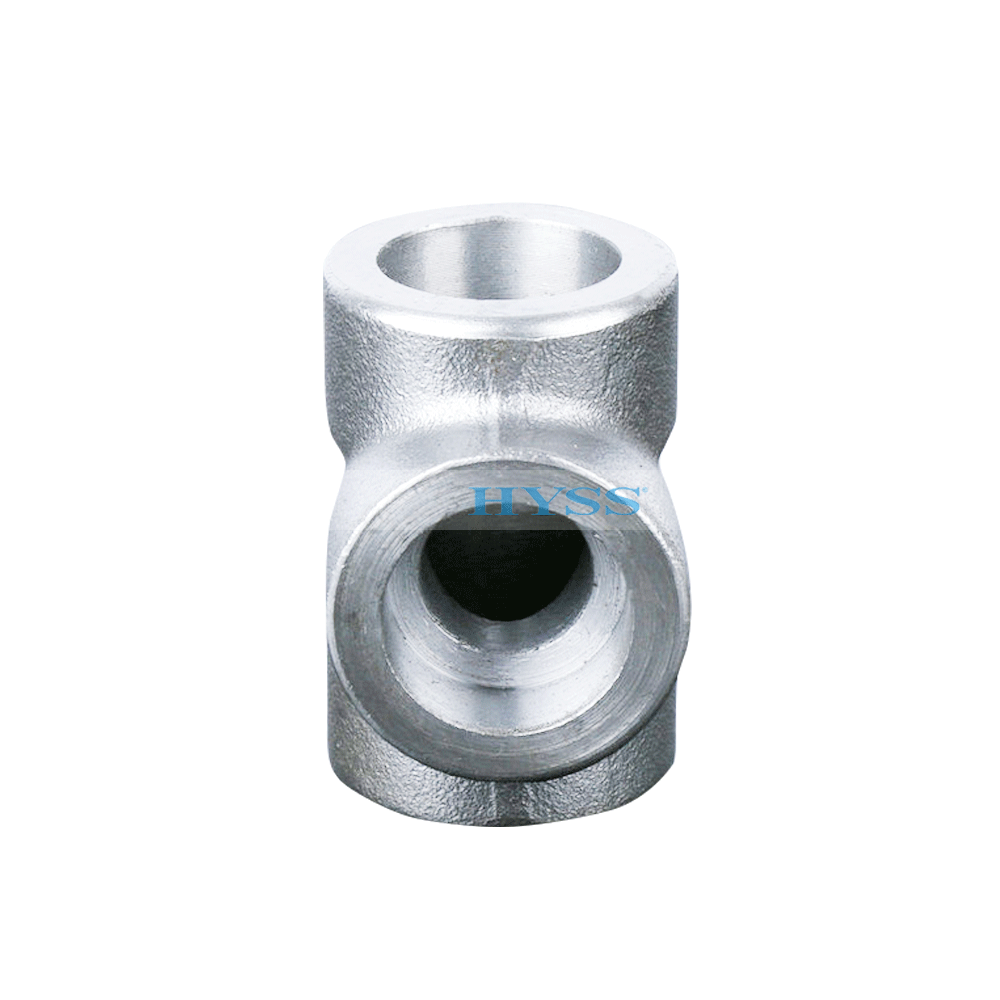

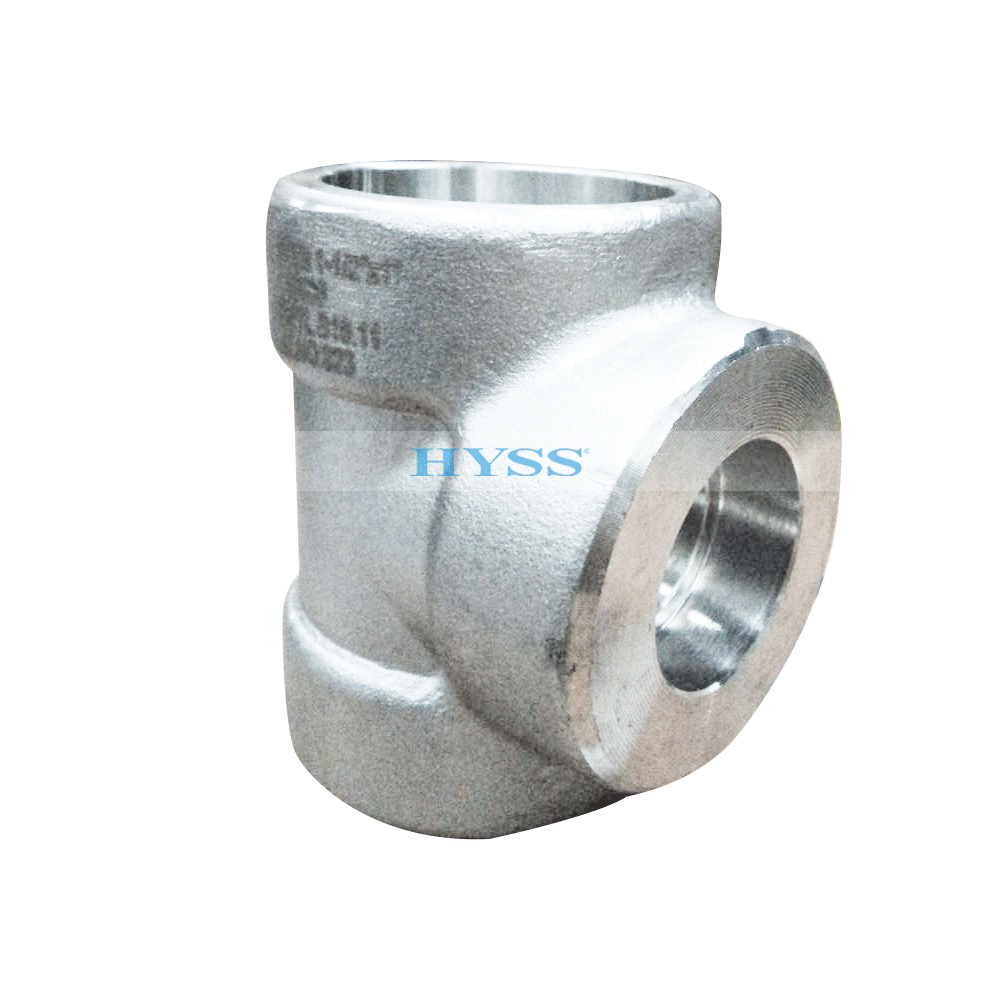

Pictures:

Dimensions as below:

Nominal Diameter (mm)		Center to End (A) (mm)			Outside Diameter (H) (mm)
Nominal Diameter (mm)		Center to End (A) (mm)			Outside Diameter (H) (mm)
NPS	DN	2000	3000	6000	2000	3000	6000
1/8	6	21	21	25	22	22	25
1/4	8	21	25	28	22	25	33
3/8	10	25	28	33	25	33	38
1/2	15	28	33	38	33	38	46
3/4	20	33	38	44	38	46	56
1	25	38	44	51	46	56	62
1.1/4	32	44	51	60	56	62	75
1.1/2	40	51	60	64	62	75	84
2	50	60	64	83	75	84	102
2.1/2	65	76	83	95	92	102	121
3	80	86	95	106	109	121	146
4	100	106	114	114	146	152	152

Nominal Diameter (mm)		Minimum Wall Thickness (mm)			Minimum Thread Length (mm)
Nominal Diameter (mm)		Minimum Wall Thickness (mm)			Minimum Thread Length (mm)
NPS	DN	2000	3000	6000	B	L2
1/8	6	3.18	3.18	6.35	6.40	6.70
1/4	8	3.18	3.30	6.60	8.10	10.20
3/8	10	3.18	3.51	6.98	9.10	10.40
1/2	15	3.18	4.09	8.15	10.90	13.60
3/4	20	3.18	4.32	8.53	12.70	13.90
1	25	3.68	4.98	9.93	14.70	17.30
1.1/4	32	3.89	5.28	10.59	17.00	18.00
1.1/2	40	4.01	5.56	11.07	17.80	18.40
2	50	4.27	7.14	12.09	19.00	19.20
2.1/2	65	5.61	7.65	15.29	23.60	28.90
3	80	5.99	8.84	16.64	25.90	30.5
4	100	6.55	11.18	18.67	27.70	33.00

Nominal Diameter (mm)		Socket Bore (mm)	Minimum Depth of Socket (mm)	Bore diameter of fitting (mm)
				class designation
				3000	6000	9000
NPS	DN
1/8	6	11.2	9.5	7.6	4.8	-
		10.8		6.1	3.2	-
1/4	8	14.6	9.5	10.0	10.0	-
		14.2		8.5	7.1	-
3/8	10	18.0	9.5	13.3	5.6	-
		17.6		11.8	9.9	-
1/2	15	22.2	9.5	16.6	8.4	-
		21.8		15.0	12.5	7.2
3/4	20	27.6	12.5	21.7	11.0	5.6
		27.2		20.2	16.3	11.8
1	25	34.3	12.5	27.4	14.8	10.3
		33.9		25.9	21.5	16.0
1.1/4	32	43.1	12.5	35.8	19.9	14.4
		42.7		34.3	30.2	23.5
1.1/2	40	49.2	12.5	41.6	28.7	22.0
		48.8		40.1	34.7	28.7
2	50	61.7	16.0	53.3	33.2	27.2
		61.2		51.7	43.6	38.9
2.1/2	65	74.4	16.0	64.2	42.1	37.4
		73.9		61.2	-	-
3	80	90.3	16.0	79.4	-	-
		89.8		76.4	-	-
4	100	115.7	19.0	103.8	-	-
		115.2		110.7	-	-

Nominal Diameter (mm)		Socket wall thickness (mm)						Body wall thickness (mm)
		class designation						class designation
		3000		6000		9000		3000	6000	9000
NPS	DN	avg	min	avg	min	avg	min
1/8	6	3.18	3.18	3.96	3.43	-	-	2.41	3.15	-

1/4	8	3.78	3.3	4.6	4.01	-	-	3.02	3.68	-

3/8	10	4.01	3.5	5.03	4.37	-	-	3.2	4.01	-

1/2	15	4.67	4.09	5.97	5.18	9.35	8.18	3.73	4.78	7.47

3/4	20	4.9	4.27	6.96	6.04	9.78	8.56	3.91	5.56	7.82

1	25	5.69	4.98	7.92	6.93	11.38	9.96	4.55	6.35	9.09

1.1/4	32	6.07	5.28	7.92	6.93	12.14	10.62	4.85	6.35	9.7

1.1/2	40	6.35	5.54	7.92	7.8	12.7	11.12	5.08	7.14	10.15

2	50	6.93	6.04	10.92	9.5	13.84	12.12	5.54	8.74	11.07

2.1/2	65	8.76	7.67	-	-	-	-	7.01	-	-

3	80	9.52	8.3	-	-	-	-	7.62	-	-

4	100	10.69	9.35	-	-	-	-	8.56	-	-
